Black transparent panda shaft T1

Technical Data：
• Switching voltage: 12 V AC/DC max. 工作电压
• Switching current: 10 mA AC/DC max. 工作电流
• Dielectric strength: 500 V / 50Hz 耐压
• Durability: > 0.5 million actuations 寿命
• Contact configuration: Single-pole contact 接触形式：单极单头

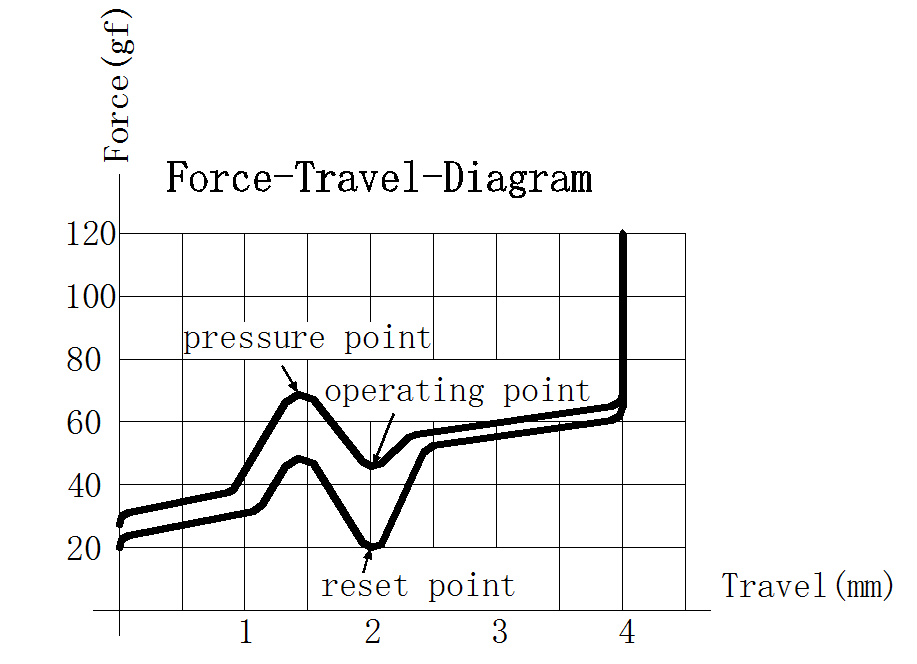

• Actuator travel: 4.0 ± 0.3 mm 全行程
• Pretravel: 2.0 ± 0.6 mm 预行程
• Initial force: 20gf min. 初始力度
• Operating force:70±20gf.操作力度
• Total travel force: 67 ± 20 cN 触底力度
• Bounce time: < 5 ms (during actuation with 0,4 m/s) 转换时间
• Spring: Stainless steel（gold-plate）镀金弹簧
• Contacts: High-quality gold alloy 黄金触点
• Storage Temperature: 5°C to 40°C 储存温度

• Operating Temperature: -40°C to 70°C 使用温度
