HK-14-1X-16A-1586 Anti-Dumping Switch

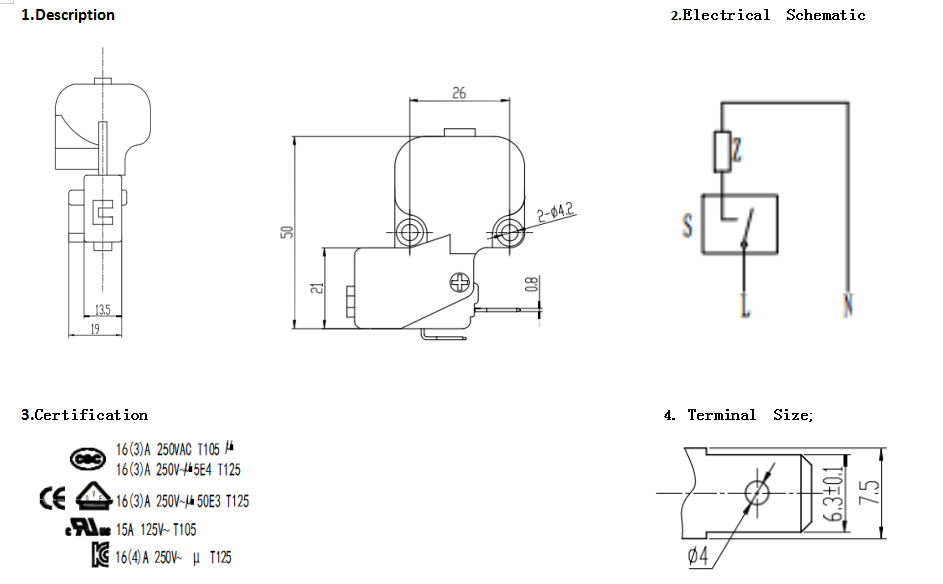

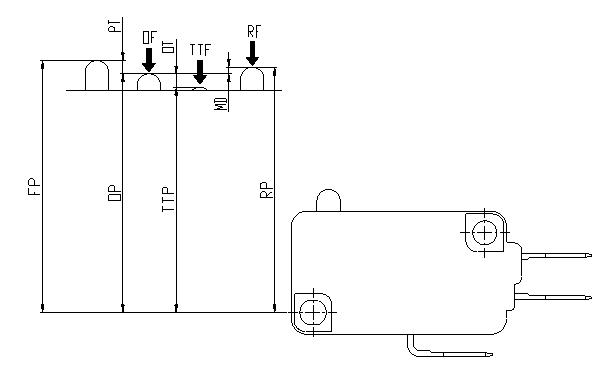

The defining characteristics of operation

Operating Parameter

Value

Units

Free Position FP

15.9±0.2

mm

Operating Position OP

14.9±0.5

mm

Releasing Position RP

15.2±0.5

mm

Total travel Position

13.1

mm

Operating Force OF

0.25~1.0

N

Releasing Force RF

—

N

Total travel Force TTF

—

N

Pre Travel PT

0.6-1.5

mm

Over Travel OT

1.0Min

mm

Movement Differential MD

0.4Max

mm

ITEM

technical parameter

Value

1

Contact  Resistance

≤30mΩ Initial value

2

Insulation Resistance

≥100MΩ500VDC

3

Dielectric Voltage

between non-connected terminals

1000V/0.5mA/60S

between terminals and the metal frame

3000V/0.5mA/60S

4

Electrical Life

≥50000 cycles

5

Mechanical Life

≥1000000 cycles

6

Operating Temperature

-25~125℃

7

Operating Frequency

electrical:15 cycles
Mechanical:60 cycles

8

Vibration Proof

Vibration Frequency:10~55HZ;
Amplitude:1.5mm;
Three directions:1H

9

Solder Ability: More than 80% of immersed part shall be covered with solder

Soldering Temperature:235±5℃
Immersing Time:2~3S

10

Solder Heat Resistance

Dip Soldering:260±5℃ 5±1S
Manual Soldering:300±5℃ 2~3S

11

Safety Approvals

UL,CSA,VDE,ENEC,TUV,CE,KC,CQC

12

Test Conditions

Ambient Temperature:20±5℃
Relative Humidity:65±5%RH
Air Pressure:86~106KPa
